MobED (Mobile Eccentric Droid) :: Hyundai

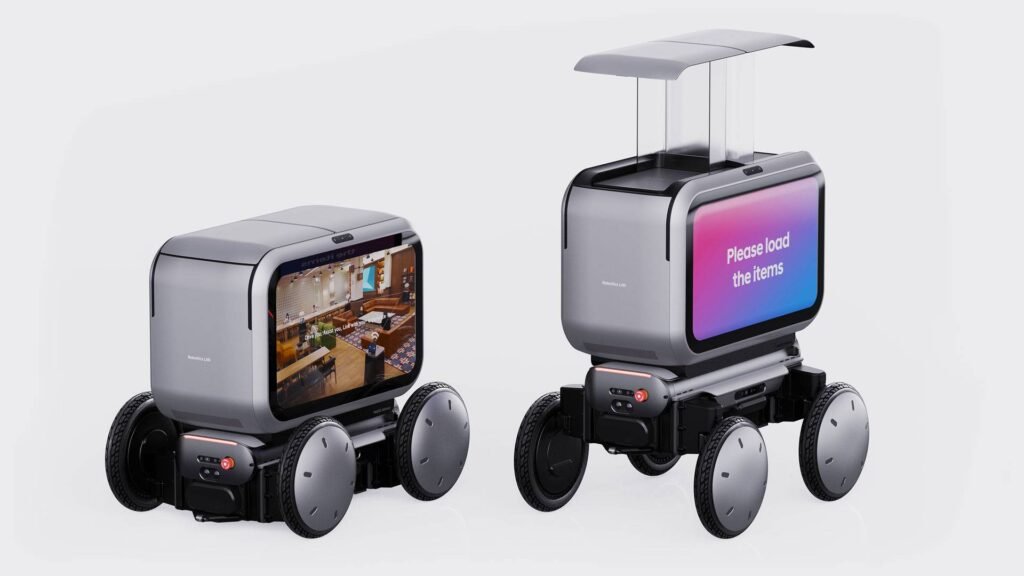

MobED (Mobile Eccentric Droid) is an advanced robotics platform developed by Hyundai Motor Group’s Robotics LAB. Featuring four independently controlled wheels and a unique eccentric mechanism, MobED can navigate various terrains and remain stable on uneven surfaces. Its autonomous driving technology ensures safe and efficient obstacle avoidance, even in crowded environments. As a mobile robot platform, MobED offers a universal mounting rail and API, making it easy for anyone to develop and attach custom upper modules for tasks like delivery, surveillance, research, and advertising. There are two versions available: the Basic model provides a flexible foundation for users to design and build mobile robots tailored to their needs, maximizing adaptability. The Pro model supports the same level of customization but is equipped with additional sensors, enabling convenient and reliable autonomous driving in various environments. This dual-model approach broadens MobED’s usability and application potential.

• MobED, Hyundai Motor Group Robotics LAB’s first mass-produced mobility robot platform, is designed for diverse industrial and everyday applications
• MobED debuts an innovative approach to robotics functionality, defined by Adaptive Mobility (H/W), Intuitive Autonomy (S/W) and Infinite Journey (applications)

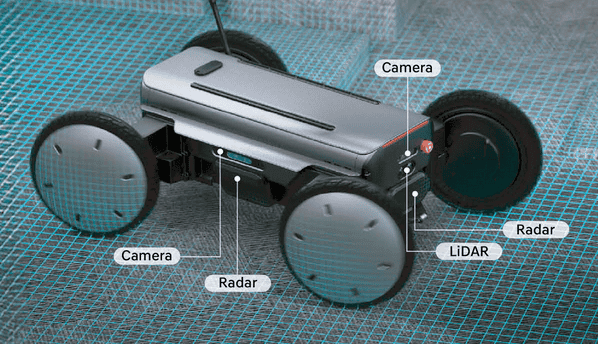

• MobED features AI-based autonomous navigation, LiDAR-camera fusion sensors, and an eccentric posture control mechanism for stable and adaptive movement
• Design blends precision and elegance, with integrated sensors and Drive-and-Lift (DnL) modules ensuring exceptional balance and optimized functionality

MobED Specifications

Product Size (W * L * H (mm))

• Pro: Up to 750 × 1150 × 650 (including antenna height)
• Basic: Up to 750 x 1150 x 430

Tare Weight (kg)

• Pro: Up to 88
• Basic: Up to 47

Maximum payload (kg)

• Pro: Up to 78
• Basic: Up to 57

MobED Product Features

Structural Characteristics

• 360° rotating eccentric structure (eccentric rotation radius: 100 mm)

Drive Modes

• Pro: Autonomous (Autonomous, Smart Assist) / Manual (Basic, Freestyle, Zigzag)
• Basic: Manual (Basic, Freestyle, Zigzag)

Posture while driving

• Outward deployment, inward deployment, backward, forward

Driving Speed

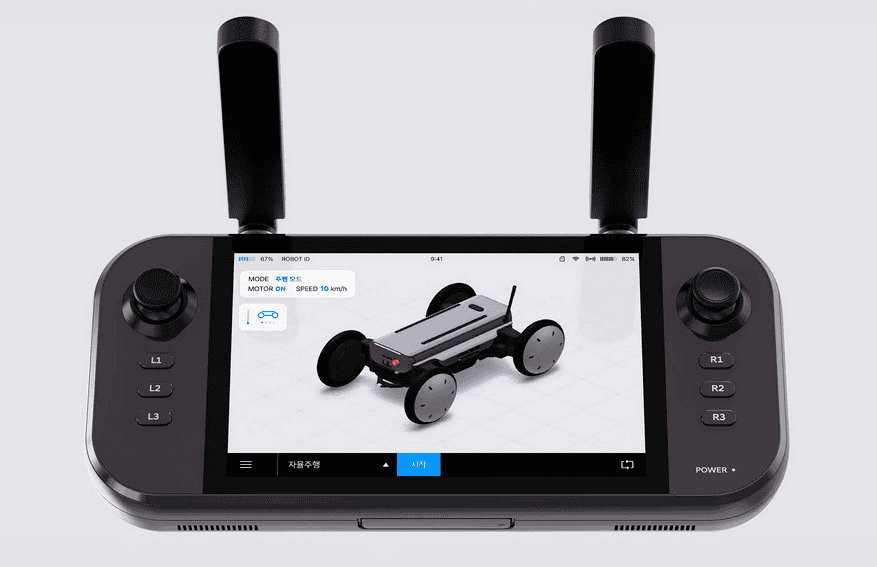

Autonomous Driving/Normal Driving

• Pro
  1. Inward posture: Up to 0.3 m/s
  2. Other postures: Up to 2.8 m/s

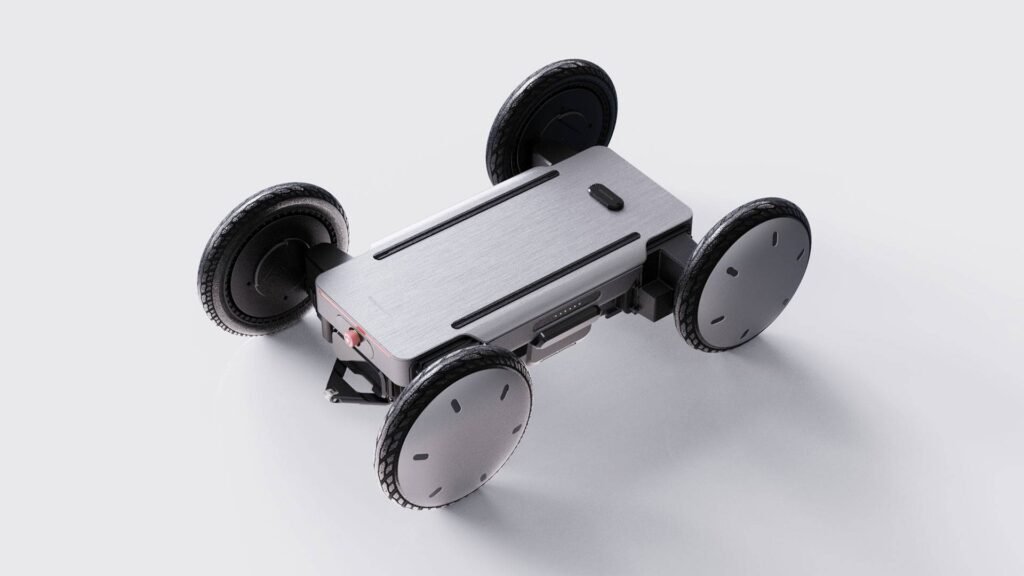

• Basic
  1. Autonomous Driving: Not included (A custom autonomous driving kit can be installed on the top module)

Maximum Slope angle (°)

• Max ±10° (slopes over 10° automatically avoided)
  Operation is subject to user discretion according to the environment and local traffic regulations

Curbstone Clearance Height (mm)

• 100 ~ 200 (Curbstone location specified by the user when creating a map)
  Operation is subject to user discretion according to the environment and local traffic regulations

Functional Safety

• Sensor: Radar
• Driving Speed: Up to 2.8 m/s (10kph) or less

Environmental Conditions

• Operating Temperature/Charging Temperature: 0–40°C / 1–35°C
• Storage Temperature: 0–40°C

Battery

• Operating Voltage: Rated capacity: 1.47 kWh; battery pack voltage: 36–49.2 V; rated discharge current: 33.6 A
• Operating Time: ≥ 4 hours (BMS SOC 90% → 10%)
• Charging Time: ≤ 2 h 30 min (BMS SOC 10% → 90%)
• Certifications: UL2271

Top Module Port Interface

• Mechanical Specifications: Mounting rail
• Communication Specifications: API provided – Ethernet (Pro only)/API provided – RS422 (BASIC Only)
• Power Specifications: Top module port: 24V, 300W / 48V, 500W
• Software Update & Diagnostics: Wired update, diagnostic scanner

Certifications

• CE (ISO13482 / ISO3691-4), UL (UL3100 / UL3300): In Progress
• Ingress Protection: IP54

Charging

• Charging Station Certification: IEC / UL / KC60335, KC / CE / FCC
• Charging Method
  • Pro: Manual charger, charging station (Automatic charging module sold separately)
  • Basic: Manual charger

Warranty

• Quality Guarantee: 1 year
